- California residents
- California and Utah residents (Utah effective 7/1/18): this water heater does not meet ULTRA LOW NOX (ULN) emissions requirements, regulations prohibit the sale, shipment or installation of this water heater in any air quality district that requires ULN water heaters
- Texas residents: this water heater model meets or exceeds Low NOx (LN) emissions requirements for all air quality management districts
- Space saver design: the short heights and narrow jacket diameters, plus the top, front and rear water inlets/outlets offer the ultimate in installation flexibility
- System sentinel LED diagnostic system verifies system operation sequence by sequence
- Strong tank design: universals proprietary steel formulation, patented multi-flue design, combined with 2 coats of porcelain enamel, results in a superior heat exchanger design
- Direct spark to pilot ignition system: saves energy by igniting only when there is a call for heat
- Low profile automatic flue damper: low profile damper minimizes overall product height and heavy-duty vent hood supports are designed to withstand the rigors of installation
- Easy to service: factory installed full port, full flow brass drain valve allows for faster draining and servicing
- Multiple water connections simplify installation
- Built-in corrosion resistance: patented anode design for a long tank life
- Insulation: sag and moisture proof fiberglass insulation surrounds the storage tank and heavy mineral wool insulation surrounds the combustion chamber
- Gas control system: thermostat adjusts from 100°F to 180°F, 24-Volt combination gas valve includes main gas pressure regulation, on-off manual valve, 120/24-Volt transformer and high limit temperature cut-out
- Warranty: 3-year limited tank warranty
- Need a different configuration, no problem; our universal line offers water heaters in 35 Gal. to 100 Gal. models available in a range BTU/h in natural gas and liquid propane
- Call 1-855-400-2552 before noon for same-day installation service in most areas, or
Features
| Item Weight | 794 |
| Uniform Energy Factor | 0 |
| Returnable | 90-Day |
| Tank Lining Material | Glass |
| Commercial/Residential | Commercial |
| Nominal Tank Capacity (gallons) | 100 |
| Application Type | Commercial |
| Tank Warranty | 3 Year |
| Wattage (watts) | 0 |
| Maximum Temperature (F) | 180 |
| Water Heater Profile | Tall |
| BTU Rating | 399900 |
| Product Weight (lb.) | 794 lb |
| Finish Family | Gray |
| Water Heater Features | Overheat Protection,Temperature Pressure Relief Valve |
| Minimum Temperature (F) | 70 °F |
| Indoor/Outdoor | Indoor |
| Fuel Type | Gas |
| Pack Size | 1 |
| Vent Type | Atmospheric |
| Recovery Rate at 90F Rise (gallons/hour) | 431 |
| Household Size | 5 |

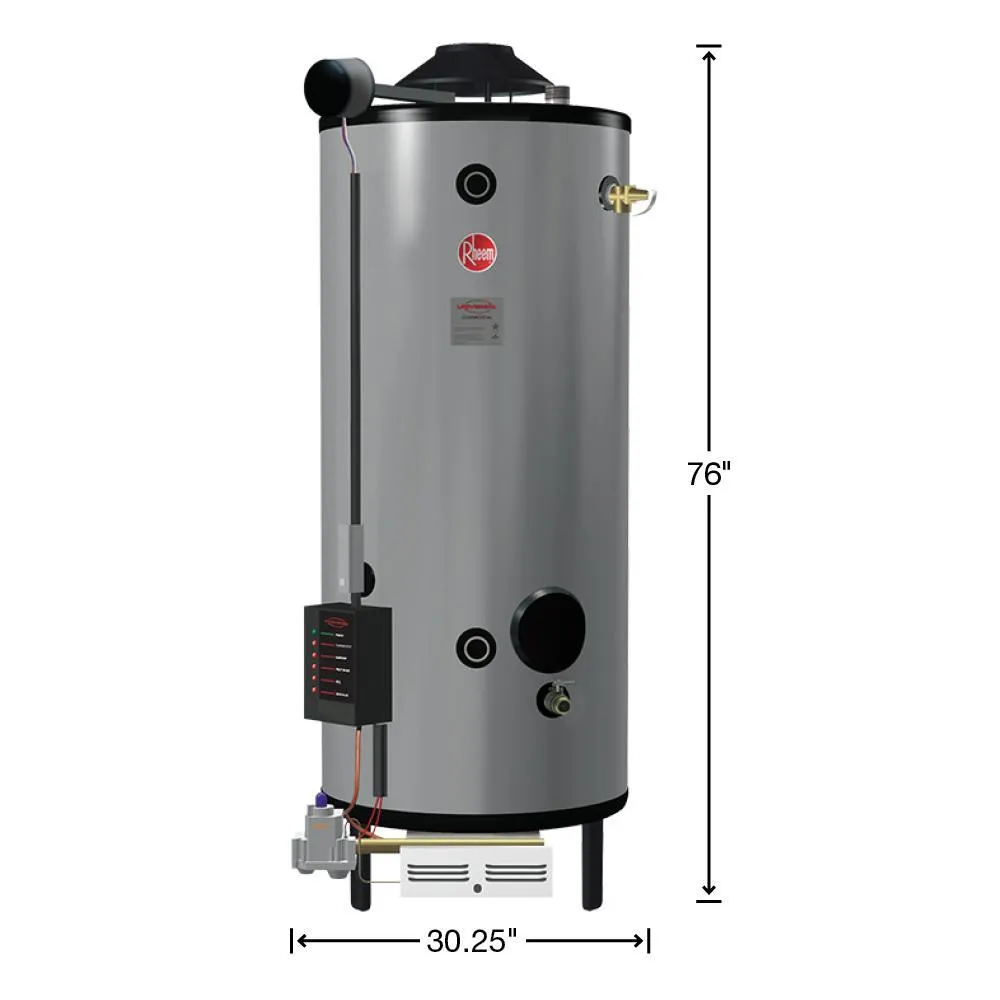

| Product Height (in.) | 76 in |
| Product Width (in.) | 30.25 in |
| Tank Valve Size (in.) | 1 |
| Product Depth (in.) | 30.25 in |
| Water Connection Size (in.) | 1.5 |
| Part Warranty | 1 Year |
| Labor Warranty | No Warranty |
| Certifications and Listings | CSA Listed,UL Listed |
